| 430 Master | |
| Max reach (m) | 4.3 |
| Lifting torque gross (kNm) | 27 |
| Lifting capacity at 3,5 m (kg) | 660 |
| Lifting capacity at full reach (kg) | 538 |
| Slewing torque (kNm) | 7.8 |
| Slewing cylinders (pcs) | 4 |
| Slewing angle | 370 |
| Rotator max axial load (kN) | 30 |
| Telescopic boom stroke length (m) | – |
| Working pressure (bar) | 180 |
| Crane’s weight without support legs and valve block (kg) | 335 |
| Recommended pump capacity (l/min) | 20-35 |
| Support legs type | FD |
| A type (telescopic) support legs weight, kg | – |
| FD type (flap down) support legs weight, kg | 135 |
| Recommended grapple size (m2) | 0.12 or 0.17 |

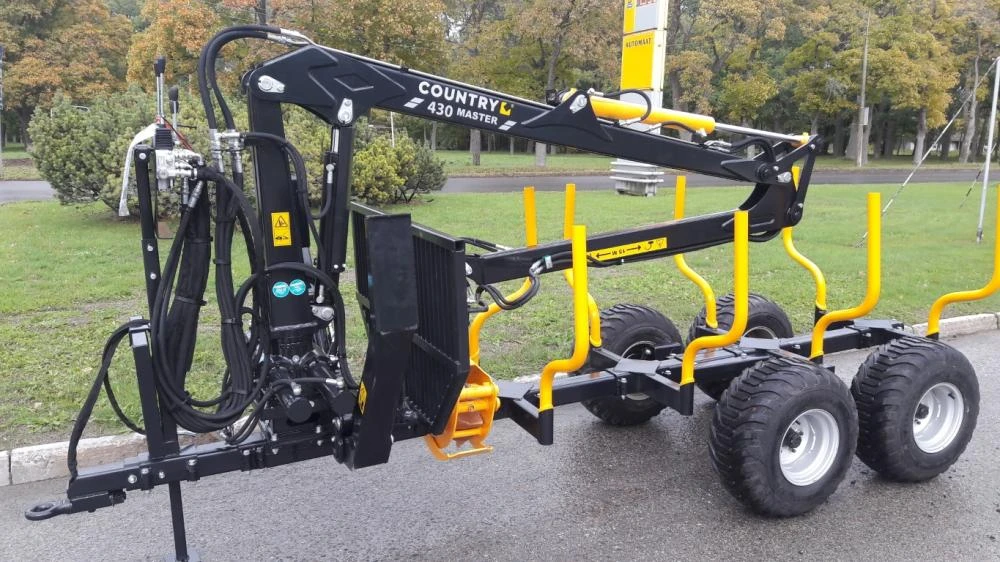

CRANE COUNTRY 430 MASTER
